MCP Server¶

The Intelligence Hub provides a Model Context Protocol (MCP) server that runs locally on your machine and connects to the Intelligence Hub backend. The MCP server exposes Gurobot, Explainer, and Modeler to MCP-compatible tools such as IDE extensions and AI coding assistants, so you can use them without leaving your development environment.

Design Rationale¶

The MCP server is delivered as a Docker container running locally on your machine. This is a deliberate design choice that addresses several limitations of the MCP protocol and provides concrete benefits over a purely cloud-hosted or in-process approach.

Simple installation and automatic updates. Docker is a single, widely available prerequisite. Pulling the latest image is all you need to pick up improvements and fixes—no package managers, version conflicts, or manual upgrades.

Working with large and binary files. MCP passes all data through the agent context window. This works well for short questions and lightweight integrations, but it cannot handle large files or binary formats. For mathematical optimization work, the ability to read model files (.lp, .mps) and compressed archives is essential. Because the container runs locally, it can read input files directly from your filesystem and write generated files—reports, scripts, formulations— back to it, without routing any of that content through the MCP context.

Preserving output fidelity. Writing generated files directly to your local filesystem means the output from the Gurobi agents reaches you exactly as produced. If files were returned through MCP, the client-side AI assistant would need to relay or reconstruct them, introducing the risk of paraphrasing or altering the content.

Controlled filesystem access. The container can only access the root directory you explicitly mount, along with everything beneath it. It cannot read or upload files from the rest of your system—even if an agent were somehow misdirected. This gives you a clear, auditable boundary around what the MCP server can touch.

Credential isolation. Your Gurobi Intelligence credentials are passed to the container as environment variables and used only inside it. They are never written into a project configuration file or MCP client config that could be accidentally committed or shared.

Standard observability. Because the MCP server runs as a named Docker container, its logs are available through Docker’s standard interfaces— either from the command line with docker logs -f gurobimcp or in the Docker Desktop UI. This gives you a straightforward way to trace what happened during a session and monitor agent interactions without any additional tooling.

How It Works¶

The MCP server runs as a Docker container on your local machine, acting as a bridge between your MCP-compatible client and the Intelligence Hub backend:

The MCP server starts as a Docker container from the gurobi/mcp image on Docker Hub.
It authenticates with the Intelligence Hub using credentials (Access ID and Secret, or license file) generated from an API key.
MCP-compatible clients connect to the container and gain access to the Intelligence Hub agents.

Running the server as a container provides a controlled, secure environment and makes it easy to stay up to date—pulling the latest image is all you need to get new features and fixes.

Prerequisites¶

Before setting up the MCP server, you need:

Docker installed and running on your machine.
An active Intelligence Hub account.
Gurobi Intelligence credentials (Access ID and Secret, or license file). Obtain your credentials from the API Keys section.
A project directory to mount for file access.

Licensing Options¶

You can provide your Gurobi Intelligence credentials in two ways.

Option 1: Using Environment Variables (Recommended)¶

$ export GRB_INTELLIGENCE_ACCESS_ID=your_access_id
$ export GRB_INTELLIGENCE_SECRET=your_secret
$ export GRB_MCP_MOUNT=$HOME/work

$ docker run -d --name gurobimcp -p 61095:61095 \
    -e GRB_INTELLIGENCE_ACCESS_ID \
    -e GRB_INTELLIGENCE_SECRET \
    -v $GRB_MCP_MOUNT:/workspace \
    -e GRB_MCP_MOUNT \
    gurobi/mcp:latest

Option 2: Using a License File¶

$ export GRB_LICENSE_INTELLIGENCE_FILE=$HOME/gurobi-intelligence.lic
$ export GRB_MCP_MOUNT=$HOME/work

$ docker run -d --name gurobimcp -p 61095:61095 \
    -v $GRB_LICENSE_INTELLIGENCE_FILE:/opt/gurobi/gurobi-intelligence.lic \
    -v $GRB_MCP_MOUNT:/workspace \
    -e GRB_MCP_MOUNT \
    gurobi/mcp:latest

Path Mapping¶

The MCP server automatically translates paths between your host system and the container:

Host path: $HOME/work/mymodel.mps
Container path: /workspace/mymodel.mps (automatically mapped)
GRB_MCP_MOUNT: Must match the host path being mounted

Note: Only one project directory mount is supported. If you need access to files in multiple directories, mount a parent directory that contains them all.

Usage Examples¶

Single Project (Environment Variables)¶

export GRB_INTELLIGENCE_ACCESS_ID=your_access_id
export GRB_INTELLIGENCE_SECRET=your_secret
export GRB_MCP_MOUNT=$HOME/optimization-project

docker run -d --name gurobimcp -p 61095:61095 \
  -e GRB_INTELLIGENCE_ACCESS_ID \
  -e GRB_INTELLIGENCE_SECRET \
  -v $GRB_MCP_MOUNT:/workspace \
  -e GRB_MCP_MOUNT \
  gurobi/mcp:latest

Single Project (License File)¶

export GRB_LICENSE_INTELLIGENCE_FILE=$HOME/gurobi-intelligence.lic
export GRB_MCP_MOUNT=$HOME/optimization-project

docker run -d --name gurobimcp -p 61095:61095 \
  -v $GRB_LICENSE_INTELLIGENCE_FILE:/opt/gurobi/gurobi-intelligence.lic \
  -v $GRB_MCP_MOUNT:/workspace \
  -e GRB_MCP_MOUNT \
  gurobi/mcp:latest

Windows with Docker Desktop¶

set GRB_INTELLIGENCE_ACCESS_ID=your_access_id
set GRB_INTELLIGENCE_SECRET=your_secret
set GRB_MCP_MOUNT=%USERPROFILE%\work

docker run -d --name gurobimcp -p 61095:61095 ^
  -e GRB_INTELLIGENCE_ACCESS_ID ^
  -e GRB_INTELLIGENCE_SECRET ^
  -v %GRB_MCP_MOUNT%:/workspace ^
  -e GRB_MCP_MOUNT ^
  gurobi/mcp:latest

Note: The server automatically handles Windows path formats and converts them to Unix-style paths within the container.

Exposed Ports¶

61095: MCP server HTTP port (required for AI assistant communication)

Configuring AI Assistants¶

Once the MCP server is running, you need to configure your AI assistant to connect to it.

The MCP server is designed to work with AI development environments that support the Model Context Protocol, such as:

Claude Desktop
Claude Code (CLI)
GitHub Copilot (VS Code)
Other MCP-compatible AI assistants

Claude Desktop and Claude Code¶

Claude Code

Use the CLI to add the server:

claude mcp add -t http gurobi http://localhost:61095/api/v1/agent/mcp

After running the command:

Restart Claude Code
Look for the MCP server connection indicator in the interface
The Gurobi Intelligence tools should now be available in your conversations

Claude Desktop

Add the following to your Claude Desktop MCP configuration file (claude_desktop_config.json):

{
  "mcpServers": {
    "gurobi": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "http://localhost:61095/api/v1/agent/mcp"
      ]
    }
  }
}

After updating the configuration, restart Claude Desktop. The Gurobi Intelligence tools will become available in your conversations.

GitHub Copilot (VS Code)¶

Add the following to your MCP configuration file:

macOS/Linux: ~/Library/Application Support/Code/User/mcp.json
Windows: %APPDATA%\Roaming\Code\User\mcp.json

{
  "servers": {
    "gurobi": {
      "type": "http",
      "url": "http://localhost:61095/api/v1/agent/mcp",
      "headers": {
        "Accept": "text/event-stream"
      }
    }
  },
  "inputs": []
}

After updating the configuration:

Restart VS Code
The Gurobi Intelligence MCP server should be available to GitHub Copilot

Updating the MCP Server¶

To pull the latest version of the MCP server at any time, run:

docker pull gurobi/mcp

Environment Variables¶

Required for All Deployments¶

GRB_MCP_MOUNT: Host directory path that is mounted to /workspace
- Must be an absolute path
- Must match the source path in your -v volume mount
- Example: export GRB_MCP_MOUNT=$HOME/work

File Handling¶

Once connected, the MCP server exposes Gurobot, Explainer, and Modeler as tools your MCP client can invoke. See the Gurobot, Explainer, and Modeler pages for what each agent does—this section covers only the parts that are specific to the MCP integration.

Files you reference in your prompt are read from the directory you mounted with GRB_MCP_MOUNT (see Path Mapping above). Use absolute host paths in your prompt (for example, $HOME/work/mymodel.ilp); the server translates them into the container’s /workspace view automatically.

Files generated by the agents—gurobipy scripts and execution logs from Gurobot, infeasibility and sensitivity reports from Explainer, and specifications, implementations, and test suites from Modeler—are written to a gurobi_generated/ directory inside your current working directory. They appear directly on your local filesystem so your MCP client can open, edit, or commit them like any other file.

The same conversation also remains accessible from the web application: open the MCP section in the Intelligence Hub sidebar to inspect transcripts and any artifacts produced during the session (see Monitoring MCP Sessions below).

Viewing Local Logs¶

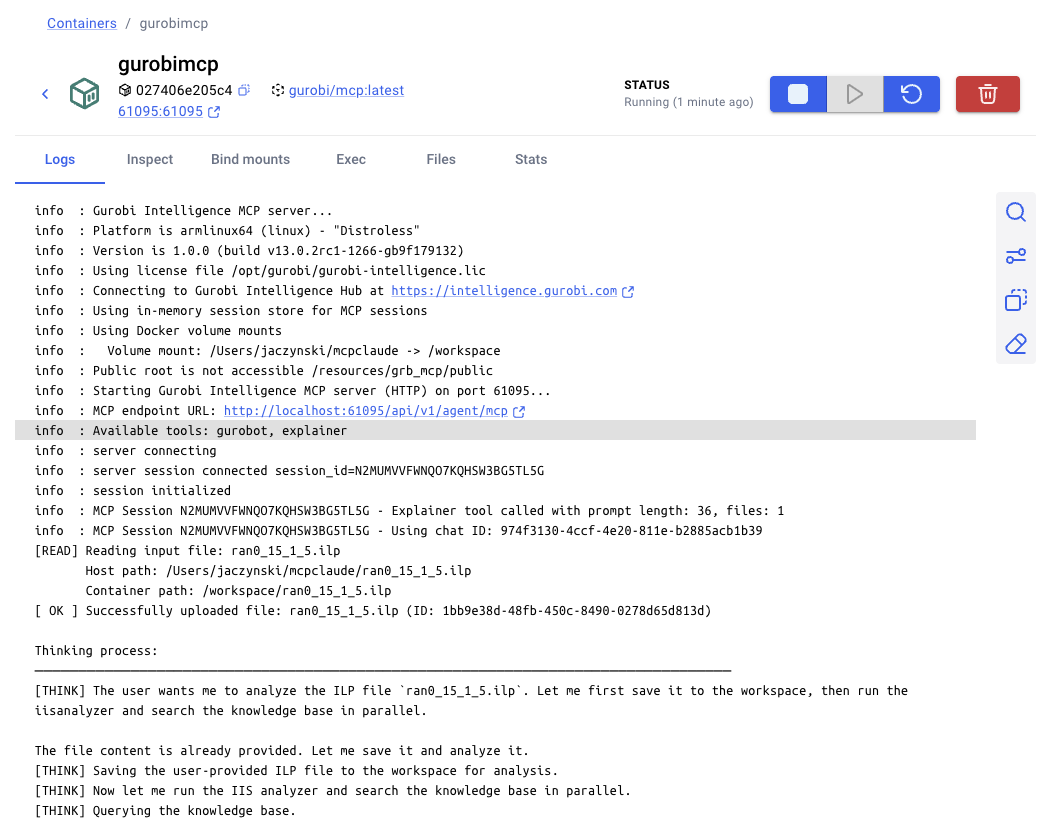

The MCP server container streams its logs to Docker, so you can follow file uploads and agent reasoning steps in real time. In Docker Desktop, open the gurobimcp container to see the live log output.

The same output is available from the command line:

docker logs -f gurobimcp

Monitoring MCP Sessions¶

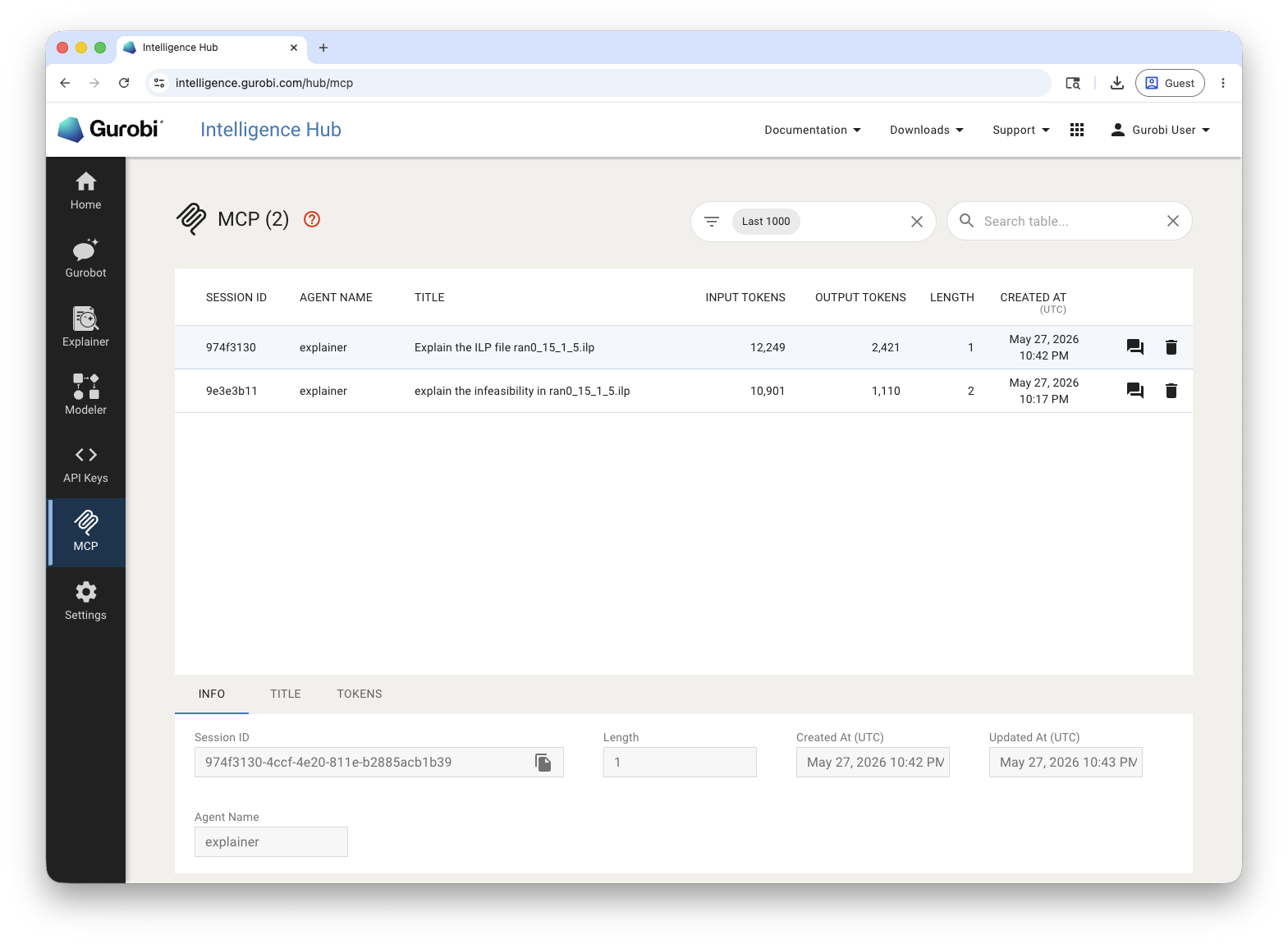

Every MCP interaction is recorded in the Intelligence Hub. Open the MCP section from the left sidebar to review your MCP sessions, including the agent used, the title of the request, token usage, length, and timestamps.

For each session you can:

Open the chat view to inspect the full exchange between the MCP client and the agent, including any reports or files generated during the session.
Review the data exchanged across the session in the INFO, TITLE, and TOKENS tabs at the bottom of the page.
Delete an individual session to permanently remove its data.
